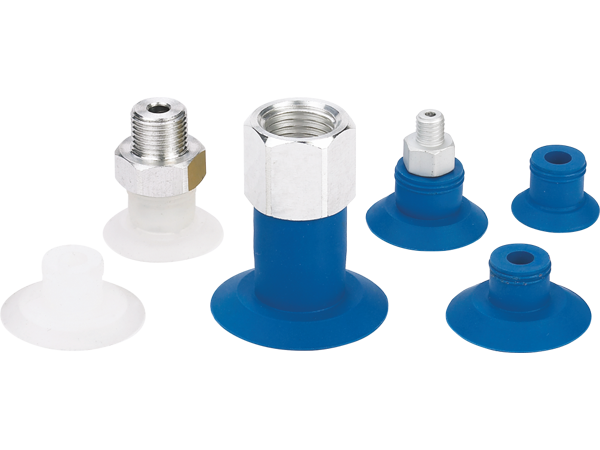

Features
◇ Various sizes are available for workpiece of different shapes and sizes.
◇ Non-mark absorption can be achieved even in high temperature.
◇ Large inner support to avoid wrinkles while handling paper and plastic film.
Applications
◇ Plastic film
◇ Paper
◇ Wood sheet
◇ Solar wafer
| How to order | |||||
| SFT 15 WS -M5M ① ② ③ ④ | |||||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread | ||
| SFT | 15 - φ15mm 20 - φ20mm 24 - φ24mm 30 - φ30mm 34 - φ34mm 35 - φ35mm 40 - φ40mm | WS - White silicone HD - High Temp/ mark free material | Nil - Suction cup alone M5M - M5 Male thread G1M - G1/8 Male thread G1F - G1/8 Female thread G2M - G1/4 Male thread G2F - G1/4 Female thread | ||
| Selection | |||||
| Model/ Connection thread | M5M | G1M | G1F | G2M | G2F |
| SFT15 - 24 | ● | ● | ● | - | - |
| SFT30 - 40 | - | - | - | ● | ● |
◇Note: "●"- standard, in stock. "—"-unavailable.
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm3) | Min. curve radius of workpiece (mm) | Recommended hose dia. (mm) |
| SFT15 | 8 | 0.2 | 16 | 6 |
| SFT20 | 14 | 1 | 18 | 6 |
| SFT24 | 20 | 1 | 23 | 6 |
| SFT30 | 32 | 1 | 28 | 8 |
| SFT34 | 41 | 2 | 33 | 8 |
| SFT35 | 43 | 2 | 19 | 8 |
| SFT40 | 57 | 3 | 39 | 8 |
◇ Note: Testing vacuum level -60kPa. Workpiece with smooth and clean surface. The data of pull-out force as above are
figured out without considering safety factor. The data may be different according to different workpiece surfaces.

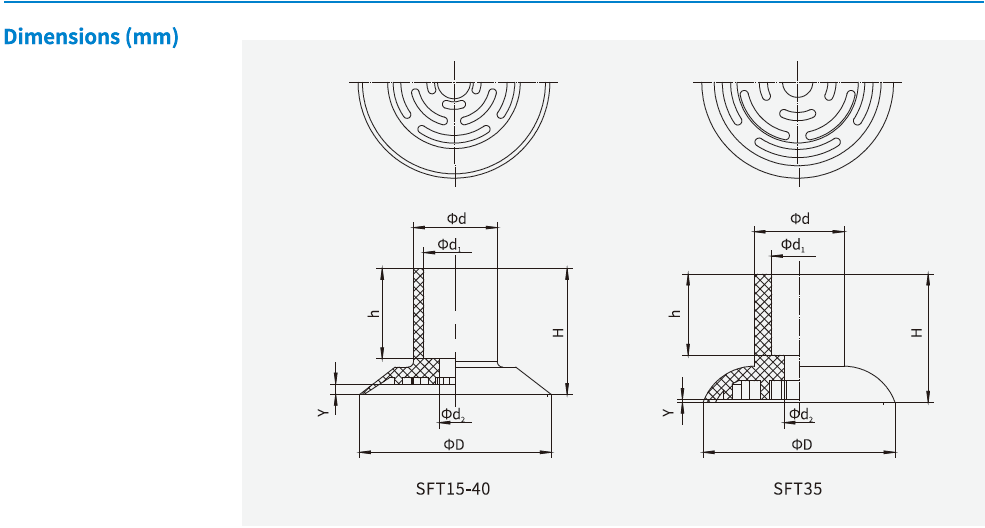

| Model/ Size | D | H | d | h | d1 | d2 | Y |
| SFT15 | 14.5 | 10 | 9 | 7.2 | 4.5 | 3.5 | 0.9 |
| SFT20 | 20.9 | 10.4 | 10.5 | 7.2 | 4.5 | 3.5 | 1.5 |
| SFT24 | 24.4 | 10.8 | 10 | 7.2 | 4.5 | 3.5 | 1.7 |
| SFT30 | 30.6 | 21.8 | 15.6 | 15.7 | 11.2 | 6.6 | 2 |
| SFT34 | 34.5 | 23 | 14.8 | 16.8 | 11.2 | 5.8 | 1.4 |
| SFT35 | 35 | 23.5 | 16.5 | 14.8 | 10 | 5.4 | 0.5 |
| SFT40 | 40.5 | 20.5 | 16 | 14.5 | 8 | 5 | 2.3 |

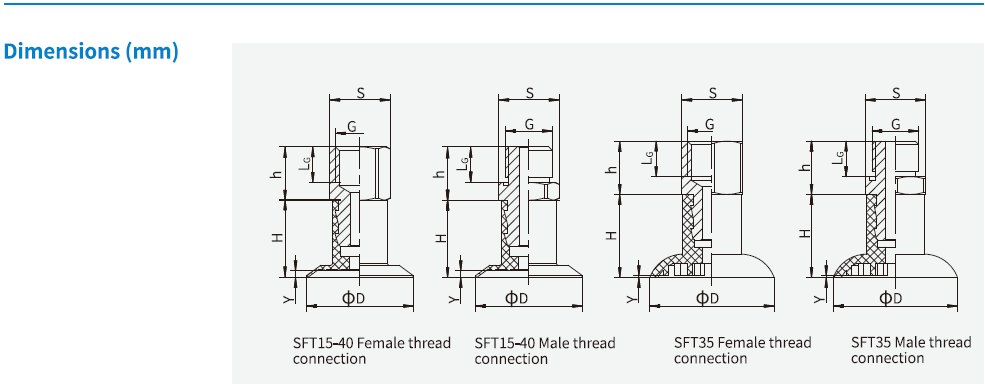

| Model/ Size | D | H | h | G | LG | Y | S |
| SFT15-M5M | 14.5 | 10 | 10 | M5 | 5 | 0.9 | 7 |
| SFT15-G1M | 14.5 | 10 | 13.5 | G1/8 | 7.5 | 0.9 | 14 |
| SFT15-G1F | 14.5 | 10 | 12 | G1/8 | 8 | 0.9 | 14 |
| SFT20-M5M | 20.9 | 10.4 | 10 | M5 | 5 | 1.5 | 7 |
| SFT20-G1M | 20.9 | 10.4 | 13.5 | G1/8 | 7.5 | 1.5 | 14 |
| SFT20-G1F | 20.9 | 10.4 | 12 | G1/8 | 8 | 1.5 | 14 |
| SFT24-M5M | 24.4 | 10.8 | 10 | M5 | 5 | 1.7 | 7 |
| SFT24-G1M | 24.4 | 10.8 | 13.5 | G1/8 | 7.5 | 1.7 | 14 |
| SFT24-G1F | 24.4 | 10.8 | 12 | G1/8 | 8 | 1.7 | 14 |
| SFT30-G2M | 30.6 | 22.2 | 15 | G1/4 | 10 | 2 | 17 |
| SFT24-G2F | 30.6 | 22.2 | 15 | G1/4 | 10 | 2 | 17 |
| SFT34-G2M | 34.5 | 23 | 15 | G1/4 | 10 | 1.4 | 17 |
| SFT34-G2F | 34.5 | 23 | 15 | G1/4 | 10 | 1.4 | 17 |
| SFT35-G2M | 34 | 23.5 | 15 | G1/4 | 10 | 0.5 | 17 |
| SFT35-G2F | 35 | 23.5 | 15 | G1/4 | 10 | 0.5 | 17 |
| SFT40-G2M | 40.5 | 20.5 | 15 | G1/4 | 10 | 2.3 | 17 |
| SFT40-G2F | 40.5 | 20.5 | 15 | G1/4 | 10 | 2.3 | 17 |
| Mounting parts | ||||||||||
| Item | Model | Applicable suction cup | ||||||||
| F - Female thread | M - Male thread | |||||||||
| Fitting for suction cup | - | PJS-M5M-SFT24 | SFT15、20、24 | |||||||
| PJS-G1F-SFT24 | PJS-G1M-SFT24 | SFT15、20、24 | ||||||||
| PJS-G2F-SFT34 | PJS-G2M-SFT34 | SFT30、34 | ||||||||
| PJS-G2F-SFT35 | PJS-G2M-SFT35 | SFT35 | ||||||||
| PJS-G2F-SFT40 | PJS-G2M-SFT40 | SFT40 | ||||||||
